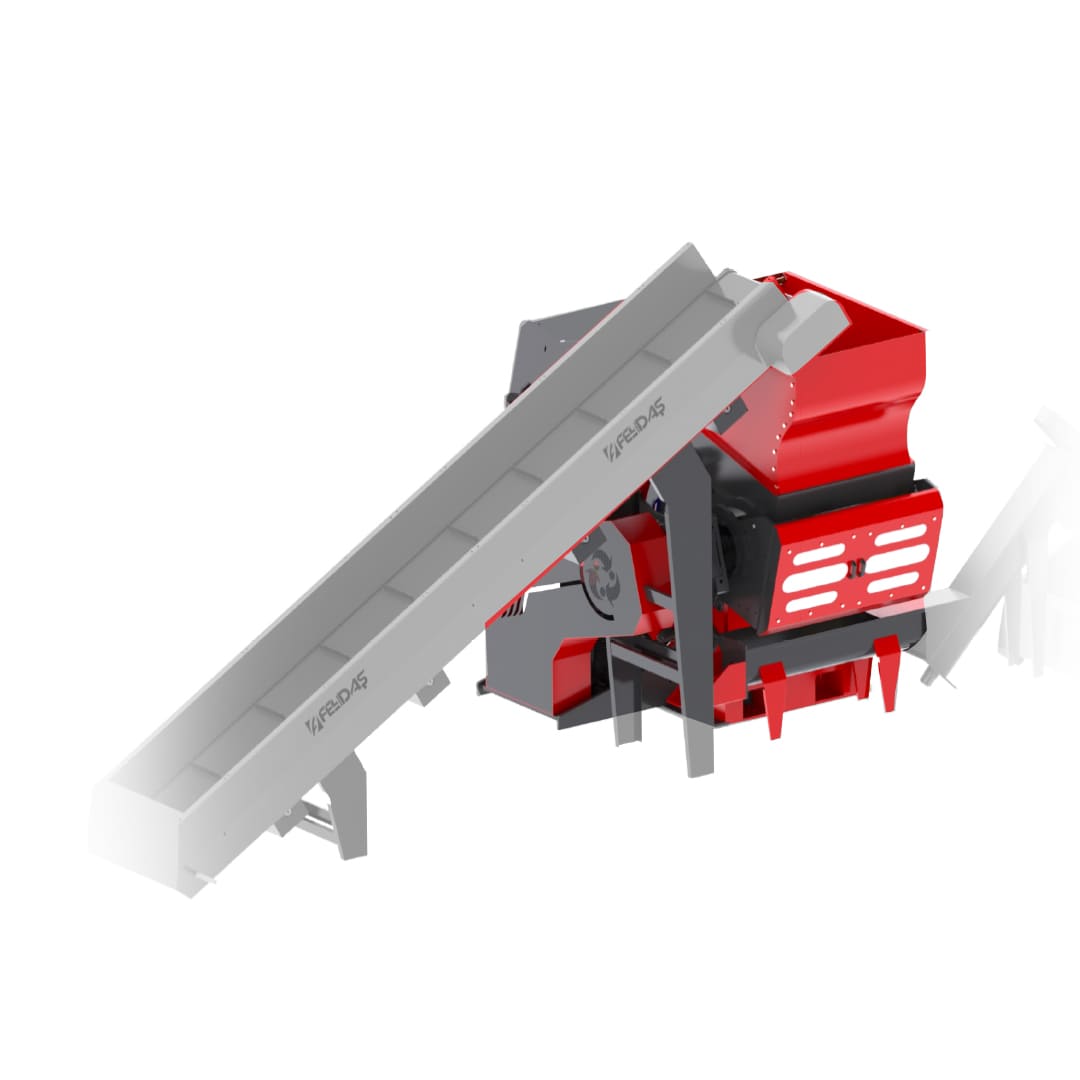

Our Shredder machine is designed with high engineering technology. This machine prepares plastic canisters, plastic bags, nylon, plastic bottles for recycling by shredding them into small pieces. Materials can be placed on the top of the Shredder Machine manually, with a fan or a fork-lift. The materials fall onto the blades of the Shredder. Thanks to powerful motors, these blades shred incoming materials and direct them towards the conveying part. The shredded material can be conveyed by a helix, conveyor, or fan. Since the blades of the Shredder are made of special metal, no rust, deterioration, or breakage is experienced. Shredder bearing housings are resistant to heavy-duty principles. They have a dust-proof and water-cooling system.
Shredder Shredder Details
MACHINE DETAILS | LEOPARD 60 | LEOPARD 90 | LEOPARD 120 | LEOPARD 160 | LEOPARD 180 |
---|---|---|---|---|---|
ROTOR LENGTH | 590 MM | 840 MM | 1120 MM | 1560 MM | 1880 MM |
ROTOR DIAMETER | 220 MM | 400 MM | 400 MM | 535 MM | 535 MM |
CUTTER BLADE DIMENSIONS - QUANTITY | 35x35 MM 23 AD / PCS | 35x35 MM 60 AD / PCS | 35x35 MM 81 AD / PCS | 60x60 MM 70 AD / PCS 35x35 MM 152 AD / PCS | 80x80 MM 182 AD / PCS |
FIXED BLADE QUANTITY | 4 AD / PCS | 6 AD / PCS | 8 AD / PCS | 8 AD / PCS | 6 AD / PCS |
SCRAPER BLADE QUANTITY | - | 19 AD / PCS | 26 AD / PCS | 37 AD / PCS | - |
MACHINE LENGTH | 1320 MM | 1570 MM | 3000 MM | 3000 MM | 3815 MM |
MACHINE WIDTH | 1750 MM | 1915 MM | 2500 MM | 2800 MM | 3655 MM |
MACHINE HEIGHT | 1530 MM | 2475 MM | 2920 MM | 3135 MM | 3560 MM |
MOTOR POWER | 22 KW - 1500 RPM | 55 KW - 75 KW | 90 KW - 132 KW | 160 KW - 200 KW | 200 KW - 250 KW |
HYDRAULIC MOTOR | 1,5 KW | 4 HP | 5,5 HP | 7,5 HP | 11 HP |
CAPACITY | 200 - 400 KG/H | 400 - 700 KG/H | 700 - 1200 KG/H | 1200 - 2000 KG/H | 2000 - 2500 KG/H |
